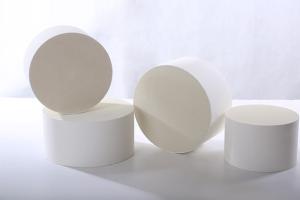

200CPSI DOC Alumina Ceramic Substrate For Catalytic Converter

Place of Origin : China.Yixing

Brand Name : Yuxing

Certification : ISO9001 TS/16949

MOQ : NO

Packaging Details : Standard export packing

Delivery Time : 5 work days

Payment Terms : T/T, L/C

Supply Ability : 6million liter/year

cells density : 100-400 CPSI

Material : Cordierite

Size : Customize

Color : White

Name : catalyst substrates|cordierite substrate|ceramic honeycomb

shape : Round

usage : car catalytic converter

Contact Now

200CPSI DOC Alumina Ceramic Substrate For Catalytic Converter

Applications:

After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of this product has achieved advanced level in China, and it approaches or has already reached the advanced level of similar products abroad.

1.Product use

After coated with catalysts, this product is applied in catalytic converter of diesel vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of the product in the leading position in domestic, close to or reach the advanced level of similar foreign products.

2.Overall dimensions standards

Item

Standard values

Test method

Wall thinkness

100CPSI

0.45MM±0.03

vernier caliper

200CPSI

0.36MM±0.03

vernier caliper

300CPSI

0.28MM±0.03

vernier caliper

400CPSI

0.21MM ±0.03

vernier caliper

Overall dimensions

OD:<100MM

±1.0MM

vernier caliper

≥100MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

≥150

±1%Height

vernier caliper

Internal crack

Bright light perspective

Physical and chemical properties

Item

Standard value

Test methods

chemical

component

Al2O3

35.2%±1%

chemical

analysis

SiO2

50.9%±1%

MgO

13.9%±1%

Cordierite main crystalline phase content

≥90%

X-ray diffraction

Compressive

strength at

room

temperature

AA xis

≥15Mpa

universal material

testing machine

BB xis

≥2Mpa

CC xis

≥0.15Mpa

water absorption

23-27%

Gravimetric method

softening temperature

≥1400℃

high-temperature electric resistance furnace

CTE(800℃)

≤1.5*10-6/℃

thermal dilatometer

thermal shock

resistance

450℃

Three times don't crack

air cooling

Description:

After coated with catalysts, this product is applied in catalytic converter of diesel vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of the product in the leading position in domestic, close to or reach the advanced level of similar foreign products.

Benefits of Products:

● Low thermal expansion coefficient

● High porosity of hole on the wall , good liquidity and uniform distribution

● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small.

● Cold start performance is good, low light-off temperature, high conversion efficiency

Specifications:

Cell density (CPSI):100~400

Item

(mm)

Sectional Dimension

(mm2)

Area of Section

Shape of Section

(mm)

Height

1

144(4.66”)

16282

200CPSI DOC Alumina Ceramic Substrate For Catalytic Converter

The height can be designed by customer.

(The standard height):76.2mm(3”), 101.6mm(4”), 127mm(5”),

152.4mm(6”).

2

150

17671

200CPSI DOC Alumina Ceramic Substrate For Catalytic Converter

3

165(6.5”)

21382

200CPSI DOC Alumina Ceramic Substrate For Catalytic Converter

4

170

22698

200CPSI DOC Alumina Ceramic Substrate For Catalytic Converter

5

175

24052

200CPSI DOC Alumina Ceramic Substrate For Catalytic Converter

6

190(7.5”)

28352

200CPSI DOC Alumina Ceramic Substrate For Catalytic Converter

7

210

34636

200CPSI DOC Alumina Ceramic Substrate For Catalytic Converter

8

228(9”)

40828

200CPSI DOC Alumina Ceramic Substrate For Catalytic Converter

9

240(9.5”)

45238

200CPSI DOC Alumina Ceramic Substrate For Catalytic Converter

10

267(10.5”)

55990

200CPSI DOC Alumina Ceramic Substrate For Catalytic Converter

11

286(11.25”)

64242

200CPSI DOC Alumina Ceramic Substrate For Catalytic Converter

12

305(12”)

73061

200CPSI DOC Alumina Ceramic Substrate For Catalytic Converter

13

330(13”)

85529

200CPSI DOC Alumina Ceramic Substrate For Catalytic Converter

REMARK: The SIZE can be designed by customer

Competitive Advantage:

● Low thermal expansion coefficient

● High porosity of hole on the wall , good liquidity and uniform distribution

● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small.

● Cold start performance is good, low light-off temperature, high conversion efficiency
